OS : CentOS 7.4

mysql : mariadb-5.5.56-2

1. master 서버

a. 환경 설정

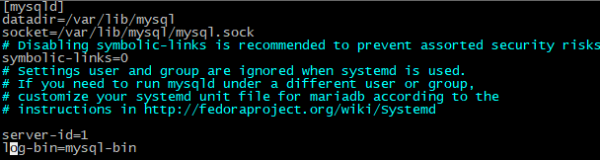

[root@ns1 opt]# vi /etc/my.cnf

server-id=1
log-bin=mysql-bin

[root@ns1 opt]# systemctl restart mariadb

b.  권한 설정

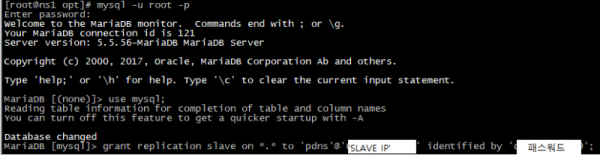

[root@ns1 opt]# mysql -u root -p
Enter password:
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 121
Server version: 5.5.56-MariaDB MariaDB Server

Copyright (c) 2000, 2017, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> use mysql;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
MariaDB [mysql]> grant replication slave on *.* to 'pdns'@'Slave_IP' identified by '패스워드';

Query OK, 0 rows affected (0.00 sec)

MariaDB [mysql]> flush privileges;
Query OK, 0 rows affected (0.00 sec)

c. DB dump

[root@ns1 opt]# mysqldump -u root -p -A > master.sql

해당 sql 파일을 2차 디버 서버로 복사

2. slave 서버

a. 환경 설정

[root@ns2 opt]# vi /etc/my.cnf

server-id=2

log-bin=mysql-bin

b. db import 및 restart

[root@ns2 ehost]# mysql -u root -p < /home/ehost/master.sql

[root@ns1 opt]# systemctl restart mariadb

3. replication  설정

a. master 서버

[root@ns1 opt]# mysql -u root -p
Enter password:
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 124
Server version: 5.5.56-MariaDB MariaDB Server

Copyright (c) 2000, 2017, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

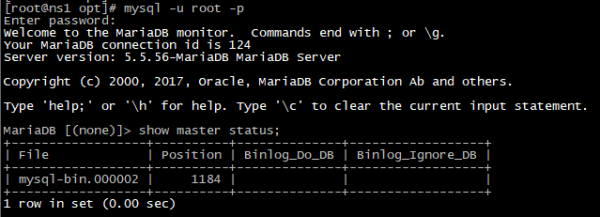

MariaDB [(none)]> show master status;
+------------------+----------+--------------+------------------+
| File             | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+------------------+----------+--------------+------------------+
| mysql-bin.000002 |     1184 |              |                  |
+------------------+----------+--------------+------------------+
1 row in set (0.00 sec)

  b. slave 서버

[root@ns2 opt]# mysql -u root -p
Enter password:
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 124
Server version: 5.5.56-MariaDB MariaDB Server

Copyright (c) 2000, 2017, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> stop slave;
Query OK, 0 rows affected, 1 warning (0.00 sec)

MariaDB [(none)]> reset slave;
Query OK, 0 rows affected (0.01 sec)

MariaDB [(none)]> change master to master_host='master_IP', master_user='pdns', master_password='패스워드', master_log_file='mysql-bin.000002', master_log_pos=1184;
Query OK, 0 rows affected (0.00 sec)

MariaDB [(none)]> start slave;
Query OK, 0 rows affected (0.00 sec)
